Bench Planes
Quick Links No. 7 - No. 8 - No. 9 - No. 10 - No. 11 - No. 14 - No. 15 - No.18 - No. 22 - No. 24 - No. 90 - No. 140 - No. 209 - No. 709 - No. 714 - No. 800 - No. 814 - No. 900 - No 8110 - No. 8114 - No. 8900 - No. 9140 - No. 9790 - No. 9814
The Millers Falls bench planes consisted of a primary line and several secondary lines. Each of the planes below will open with more detail information
Type 1 sole 7-7/16” x 2”, Iron 1-5/8”
Type 2 and type 3 sole 7-3/4” including the tote receiver
Production 1929 thru 1944
2.6 pounds
#8, 8C, 8B, 8CB, 8-03-B
Type 1 sole 8-3/4” x 2-1/8”, Iron 1-3/4
Type 2 thru 5 sole 9-1/4” including the tote receiver
Production 1929 thru 1971
3.1 pounds

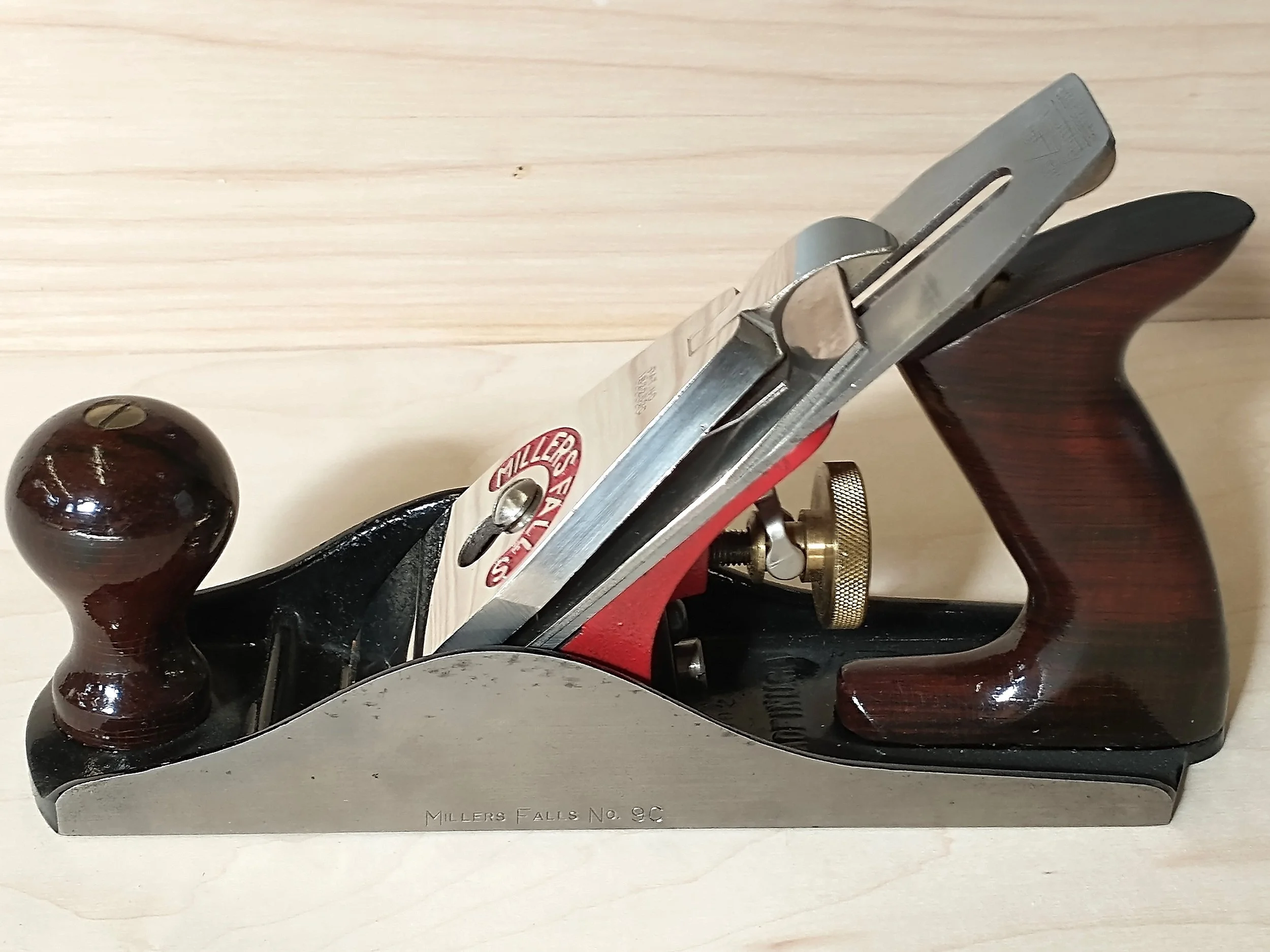

#9, 9C, 9B, 9CB, 9-02-B
Type 1 sole 9” x 2-7/16”, Iron 2”
Type 2 thru 5 sole 9-3/16” including the tote receiver
Production 1929 thru 1976
3.5 pounds
#10, 10C
Type 1 sole 10” x2-7/8”, Iron 2-3/8”
Type 2 thru 4, sole 10-3/8 including tote receiver
Production 1929 thru 1961
4.9 pounds
#11, 11B
Sole 11-1/2” x 2-1/8”, Iron 1-3/4
Production 1929 thru 1970
3.6 pounds
#14, 14C, 14B, 14CB, 14-01-B, 14CBG
Sole 14” x 2-7/16”, Iron 2”
Production 1929 thru 1978
4.6 pounds
#15, 15C
Sole 15” x 2-11/16”, Iron 2-1/4”
Production 1929 thru 1961
5.6 pounds
#18, 18C
Sole 17-7/8” x 2-7/8”, Iron 2-3/8
Production 1929 thru 1971
6.5 pounds
#22, 22C, 22B, 22CBG
Sole 21-3/4” x 2-7/8”, Iron 2-3/8”
Production 1929 thru 1967
7.2 pounds
#24, 24C
Sole 23-7/8” x 3-1/8”, Iron 2-5/8”
Production 1929 thru 1961
9.5 pounds
#90, 90CBG
Sole 9-1/4” x 2-7/16”, Iron 2”
Production 1958 thru 1971
3.7 pounds
#140, 140CBG
Sole 14-1/16” x 2-7/16”, Iron 2”
Production 1958 thru 1969
4.7 pounds
#209
Sole 9-3/8” x 2-3/8”, Iron 2”
Production 1937 thru 1941
3.9 pounds
#709
Sole 10-1/4” x2-7/16”, Iron 2”
Production 1950 thru 1960
4 pounds
#714
Sole 14-1/2” x 2-1/2”, Iron 2”
Production 1950 thru 1960
? pounds
#800
Sole 9-1/8” including the tote receiver
Production ?
3.0 pounds
#814
Sole 14” x2-7/16”, Iron 2”
Production 1933 thru 1974
4.7 pounds
#900
Sole 9-1/4” x 2-7/16”, Iron 2”
Production 1931 thru 1974
3.6 pounds
#8110
No. 8110 Details
Data is not available
Sole 10” x 2-3/8”, Iron 2”
Production 1989 thru 1991+
? pounds
#8114
No. 8110 Details
Data is not available
Sole 14” x2-3/8”, Iron 2”
Production 1989 thru 1991+
? pounds
#8900
Sole 9-1/2” x 2-7/16”, Iron 2”
Production 1974 thru 1991+
3.5 pounds
#9140
Sole 14” x 2-3/8” Iron 2”
Teflon coated cheek and sole
Production 1969 thru 1971
4.7 pounds
#9790
Sole 9-1/4” x 2-3/8” Iron 2
Teflon coated cheek and sole
Production 1969 thru 1971
3.8 pounds
#9814
Sole 14-1/4” x 2-3/8 Iron 2”
Production 1974 thru 1993+
4.7 pounds
